Evaluating Navigational RDF Queries over Web

Introduction

Motivation

Sharing across databases

• Information on relational databases is hard to share
  • Different format, schema and access policies
  • Sharing problems cause data to become outdated
• A different approach is needed

A Web-like approach

The Web provides linked documents with human readable information

• Documents are linked
  • Real owners can update the data
  • Documents can be navigated across different servers
• It's distributed
  • Can scale-out

Linked Data

One Database to rule them all

LD movement proposes a way to model data that can be linked and distributed

• A Graph made of IRIs and strings
  • IRIs link data instead of copying it
  • Uses IRIs as data identifiers
  • Uses IRIs as relation identifiers
    • And suggests collection of relations to use

Resource Description Framework

Defines the layout of the data

• An RDF triple is a tuple \((S, P, O)\)
  • \(Subject\) is an IRI or a string
  • \(Predicate\) is an IRI representing a relation
  • \(Object\) is an IRI or a string
  • It's essentially the unit of information
• Data is meant to be retrieved from the internet
  • Open-world assumption must be used

An example

prefix dblpAuthor: <http://dblp.l3s.de/d2r/resource/authors/>
prefix dblpConf:   <http://dblp.l3s.de/d2r/resource/publications/conf/>

dblpConf:sigmod/Stonebraker90    dc:creator  dblpAuthor:Michael_Stonebraker
dblpConf:sigmod/Stonebraker90  rdfs:label    "The Postgres DBMS."
dblpAuthor:Michael_Stonebraker foaf:name     "Michael Stonebraker"

Why RDF?

• Different databases can be trivially joined
  • No schema compatibility problems or conversions.
• Database can be sharded

Querying Linked Data

A data model is not enough

Databases must be queried to be useful

SPARQL

A SQL-like language for querying and modifying graph databases

• A query language
  • Queries are RDF graphs with variables and restrictions
  • Answers are computed by pattern matching
• SPARQL servers provide
  • An SPARQL endpoint to consume or update RDF data
  • A store for the data

Problems with SPARQL

• Querying multiple servers is hard
  • Query federation allows specifying multiple servers
    • Lacks discoverability
    • Queries are harder to write
• Computation is done completely server-side
  • Exposing SPARQL endpoints is troublesome
  • Queries can be computationally hard
    • Implementations often get OoM errors or timeouts (trashing/crashes)

Navigational Queries

Navigation

Searching data the way you browse for it

• You don't know which server has the answer
  • From a starting point you follow links onto your answers
• Servers just offer data
  • You do the computation and ask for data on the fly
• You don't know whether you see all the data
  • Open-world semantics are intrinsic
  • You probably can't have all of it

Property Paths

Property paths allow expressing composed relations using regular expressions over IRIs and their inverses

• Expressive and easy to compute
• Regular expressions are already widely studied
• SPARQL supports them too, but
  • Lacks the discoverability that PP allow
  • Efficient implementation is tricky, many queries are troublesome
    • Even the standard needed corrections to avoid blow-ups

Property Path examples

Automata

Definition

Property Path Automata

• An automaton over alphabet of IRIs and their inverses
• Matching requires an initial IRI to pair with the initial State
  • Computing matches needs dereferencing IRIs
  • Computations looks like resolving a search problem
• Can be enhanced with filtering on States and Transitions

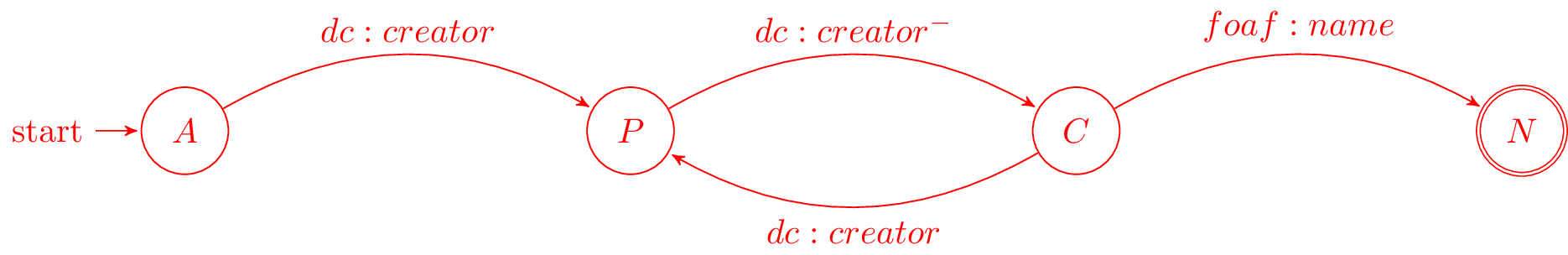

Example

Query evaluation

Automaton evaluation problem

• Given an RDF graph, an Automaton for it, and a starting RDF node,
• Find 'all' the matching paths

Evaluating an Automaton query

Matching as a Search Problem

Matching resembles a search problem

• The problem is a Search Problem over \(RDFGraph \times States\)
• But not only a shortest-path is needed
  • It's easy to tweak the search to get all shortest paths

Evaluating using search

• From the search community 3 pathfinding algorithms are well known
  • \(A^*\), BFS (Dijkstra) and DFS
  • The recursive approach that was previously used resembles DFS
• BFS and DFS were already tried
• Using \(A^*\) requires additional information about the search space
  • We found an easy way to get it

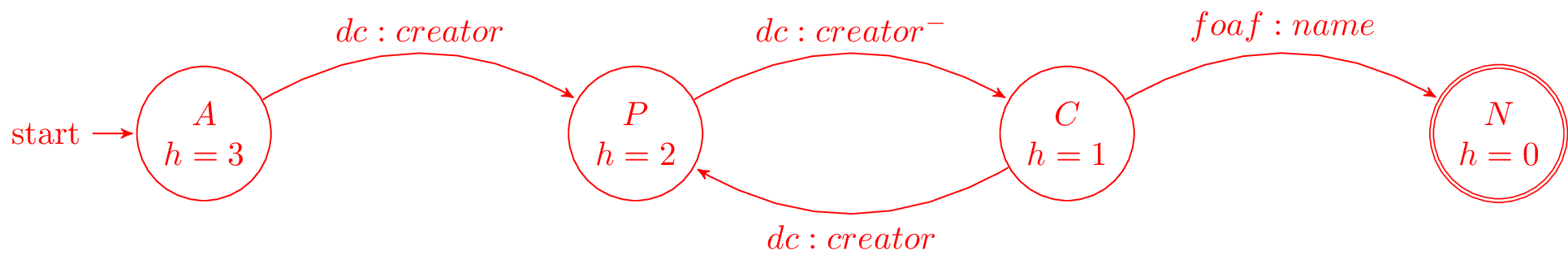

Heuristic

Distances to accepting states are lower bounds for finding answers

Implementation

• Search nodes are \((RDFNode, State)\) pairs
• We used a priority queue and an index for the existing search nodes
  • Typical \(A^*\) and BFS structures
  • Needed for deduplication on DFS
• We altered the expected cost (priority) to get different behaviours
  • \(A^*\) uses \(f=g+h\), node cost + estimated cost left
  • BFS uses \(f=g\)
  • DFS uses \(f=h\)

Optimizations used

• Parallel expansions
  • Instead of expand any top f-value node, try to expand all of them
• Early goal declaration
  • Declare goals when before adding nodes to the queue
  • Avoid adding dead-end nodes
    • Implemented by modifying the heuristic
• Precomputed heuristic

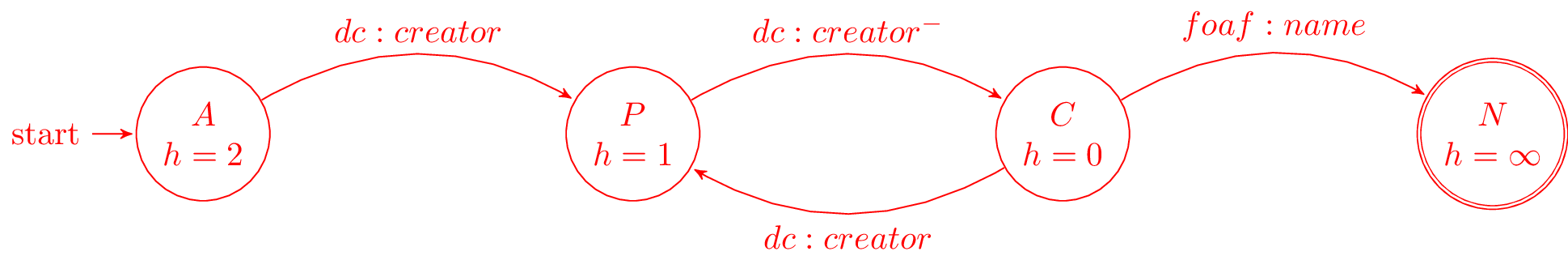

Heuristic for using Early Expansions

Expanding a \((node, state)\) discovers nodes paired with successor states

Experimental evaluation

Experiment setup

• 11 queries using
  • DBLP
  • DBpedia
  • Linked Movie Database
  • YAGO
• Ran on i5-4670 quad-core with 4 GiB RAM
• Python multi-process implementation
• Search bounds
  • Stop if \(1000\) answers are found
  • Stop if \(100000\) triples are retrieved
  • Stop after \(10\) minutes searching

Sample query - Coauthor names

Sample query - Bacon Number

Results summary

Over the 11 queries we counted on how many queries the algorithms performed the best

Results summary

Requests vs answers is the most fair measure as dereference times vary. We noted that parallelism helps all algorithm

Experiment discussion

• Little CPU usage, under 5%
• Memory used is linear on the dereferenced data
• Time dominated by dereference time
  • Parallel dereference gives free speedup
    • Gains bounded by data and throughput
• Optimizing dereference should yield to vast improvements
  • Parallel and reusable connections
  • Compression
  • Download only what is needed

Questions

Extra

Heuristic optimization demo

A weird behaviour

Notice what happens when you just discovered an IRI that is a goal for a new f-value level

• You can declare that IRI goal when you expand it's parent
  • No need to expand that IRI yet
• A weird ordering appears
  • Siblings of the goal's parent might lead to similar solutions (same \(f\))
  • But tie breaking prefers greater \(g\), thus \(h=0\) is preferred

Paths prove relation

Computing all of them seems pointless

Looking for all patterns that match can be too much

• A toy database:
  • Alphabet and a less than relation
• Which patterns match \(a \cdot lessThan^* \cdot X\)?
  • a < z
  • a < b < c < … < z
  • There's one match per subset of \(\{b..y\}\)
• Less or equal leads to infinite matches!
• Is the data flawed?
  • On the internet you won't control it. You must avoid this

TODO Evaluation - No parallelism

TODO Experiments

Available on the repo

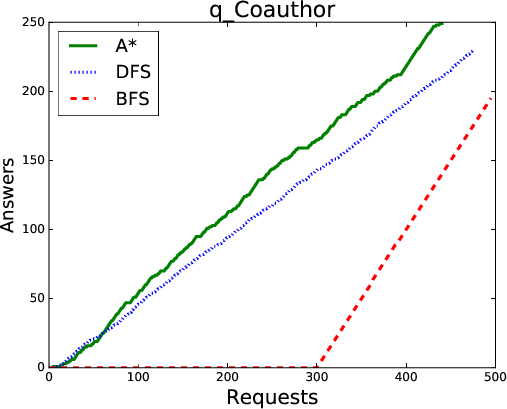

TODO Query 1

TODO Evaluation - Parallelism effect

TODO Query 1 - P40

Thanks
